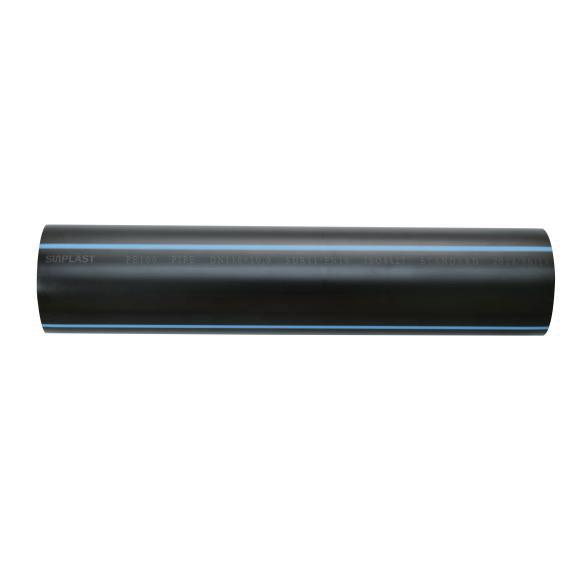

High-Performance HDPE Piping Systems
Comprehensive Manufacturing, Supply, and Installation
Our PE100 HDPE Piping Systems are engineered for superior strength and longevity. Available in a vast range of sizes up to dn1200mm, these pipes are designed to meet the most rigorous international standards. We offer versatile supply formats, including long-length coils and straight lengths, tailored to meet specific project requirements.
- Material: Premium PE100 Polyethylene
- Size Range: dn20mm to 1200mm
- Pressure Ratings: PN5, PN6, PN8 (SDR21, SDR26, SDR33)
- Form Supplied: 50-200m Coils or 5.8m/11.8m Straight Lengths
- Certifications: ISO 4427-2, EN12201-2, and BS 6920
- Service: Full manufacturing, supply, and expert site installation
Get a Quote
PHYSICAL PROPERTIES
| Item | Technical Index |
|---|---|
|
Density (g/cm³) |
0.941~ 0.965 |
|
Black Carbon Content |
2 ~ 2.5% |
|
Vica Softening Point (℃) |
≥126 |
|
Melt Flow Rate, 190°C, 5kg (g/10min) |
0.2 ~ 1.4 |
|
Longitudinal Shrinking Rate |
<3% |
|
Elastic Modulus (MPa) |
600 ~ 900 |
|
Coefficient of Linear Expansion (mm/m°C) |
0.16 ~ 0.20 |
|
Oxidation Induced Time, 200°C (min) |
≥20 |
|
xtension Rate Break |
≥350% |
Hydraulic Test for PE100 Pipe
| Condition | Result |
|---|---|
|
20°C, 100h, Circumferential Stress 12.4 MPa |
No leakage / no rupture |
|
80°C, 165h, Circumferential Stress 5.5 MPa |
No leakage / no rupture |
|
80°C, 1000h, Circumferential Stress 5.0 MPa |
No leakage / no rupture |
Hydraulic Test for PE80 Pipe
| Condition | Result |
|---|---|
|
20°C, 100h, Circumferential Stress 12.4 MPa |
No leakage / no rupture |
|
80°C, 165h, Circumferential Stress 5.5 MPa |
No leakage / no rupture |
|
80°C, 1000h, Circumferential Stress 5.0 MPa |
No leakage / no rupture |
Benefits Of High-Performance HDPE Piping Systems
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium, sanitary, no secondary pollution
- Corrosion resistance: unaffected by chemical matters and electron chemical matters which cause corrosion in metals.
- High flow capacity: smooth interior walls and low abrasion resistance result low flow resistance and high flow capacity.
- Excellent Flexibility: can be supplied in coil form, fewer fittings required and lower cost in installation.
- High impact and breakage resistance.
- Excellence UV resistance: black color HDPE pipe includes 2-2.5% black carbon content, allow the pipe can be exposed outdoor.
- Easy installation: light weight, easy to transport and handle friendly.
- Long service life: can work for more than 50 years under proper use.
- Various joint availability: thermal butt fusion, electro fusion or mechanical joint
